Precision Stainless Steel Coil Slitting Recoiling Line

  • Precision Stainless Steel Coil Slitting Recoiling Line
  • Precision Stainless Steel Coil Slitting Recoiling Line
  • Precision Stainless Steel Coil Slitting Recoiling Line
  • Precision Stainless Steel Coil Slitting Recoiling Line

Precision Stainless Steel Coil Slitting Recoiling Line

    Payment Type: L/C,T/T
    Terms of Trade: FOB,EXW
    Min. Order: 1 Set/Sets
    Delivery Time: 120 Days
    Packaging: Machine in film packing, parts in box
    Brand: JINYE
    Transportation: Ocean,Land
    Place of Origin: Wuxi, China
    HS Code: 8462311000
    Port: Shanghai

Product Description

High Precision Stainless Steel Coil slitting Recoiling Line requires very strong structure and very precise manufacturing.

Composition and Characteristics of sts coil slitting line

1.Very Strong decoiler and coil opening press roller and peeler shoveling plate, to hold Steel Coil steadily in time of steel strip being pulled out, and send strip head into pinch feeding equipment.
2.Slitter: slitter stands, shafts, knives are bigger and stronger than normal slitter. Drive motor power is about 50% more than normal model slitter.
3.All transmission rollers are PU rubber coated to avoid STS sheet surface from scratch.
4.Accumulator pit loop is longer and deep enough to make sure steel strip accumulating.
5.Tension provision unit own both roller and wool felt to provide adjustable stable tension for recoiling.
6.Recoiler has portal frame type overarm separator, from top to press separating strips.
7.Slitting speed usually are limited within 80m/min.
8.Slitting knives will be special material H13K, SLD,etc.
9.Hydraulic system, such as hydraulic cylinders, valves, should be robust and more durable.

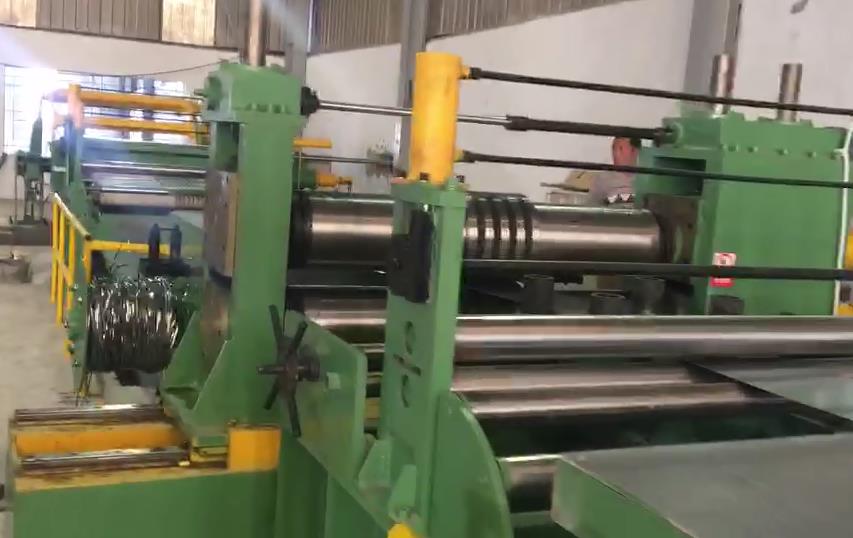

304 steel Slitting machine

Parameters of 3 x 1600 Stainless Steel slitting line


Mother Coil Slitting Number Slitting Speed Slitting precision Tools Power Capacity
0.3-3mm thick
300-1250mm width
508mm ID
1600mm OD
15T weight
30strips for 0.3-1mm;
20strips for 1.0-1.5mm;
15strips for 1.5-2.0mm;
10strips for 2.0-3.0mm;
150m/min below 1mm;
120m/min 1-1.5mm;
100m/min 1.5-2.0mm;
80m/min 2.0-3mm
20-1350mm strips width;
≤+/-1mm slit width tolerance,
coiling hump ≤0.5mm.
Knives: 6CrW2Si, SKD11, SLD
Spacers: 45# Steel
Cushion: rubber, PU rings
Nylon separator
16Mn separating discs
Total 300KW
Slitter 110KW
Coiler 132KW
30mins/coil x 15T coil,
8hours 240T
stainless sheet Slitting line

Stainless steel sheet is high quality steel, which requires high precision high quality slitting
Stainless steel, such as SUS200, SUS300, SUS400 series, compared with normal carbon steel Yield strength ≤270Mpa Tensile strength≤465Mpa, STS has better strength.

STS sheet surface is bright, should be well protected in slitting and recoiling process, the transmission rollers will be rubber coated.

SUS series National grade ASTM grade TS(Mpa) YS(Mpa)
200
Cr-Mn-Ni
12Cr17Mn6Ni5N 201 720 390
12Cr18Mn9Ni5N 202 680 356
300
Cr-Ni
301 755 275
0Cr18Ni9 304 680 320
00Cr19Ni10 304L 560 270
0Cr25Ni20 310S 655 310
00Cr17Ni14Mo2 316L 560 290
400
Cr
1Cr13 410
430 345 510
Layout of Stainless steel coil Slitting Line

8x2000SL

Wuxi Jinye Hydraulic Pneumatic Complete Set Of Equipment Co.,Ltd.



As a Manufacturing company, we focus on making metallurgical machinery, including metal coil slitting machine, cut to length line, cold rolling mills and roll forming machines.

We have been working on this field for 20years and supplied our machines to customers all around the world, like USA, Costa Rica, El Salvador, Golombia, Venezuela, Russia, Kazakstan, Ukraine, Romania, Macedonia, Serabia, Iraq, Kuwait, Saudi Arabia, UAE, Jordan, Egypt, Algeria, Nigeria, Sudan, Ghana, South Africa, India, Sri Lanka, Pakistan, Malaysia, Indonesia, Philippines, Vietnam, etc.

client logos

Rich Experiences:

Our people witness the developing process of the metallurgical equipment chain over the past 20years. We know ourselves and also know about market, thus confident of supplying customers with good machines at competitive prices.


Rapid and Efficient Response:

Investment of metallurgical equipment is a system engineering, which requires comprehensive plan and successive execution. The rapid and efficient responses of the equipment suppliers are very important, which is the base of long term continuous cooperation. We did well in this item and will do better.


Senses of Duty and Mission

Nothing proceeds smoothly without any problem, the important is to face and solve the problem. We put problem solution in priority, never shirk responsibilities. Supply of good machines creating profit for customers is our mission, the most profitable equipment is the best. Customer is the King, we must provide him the most suitable machine to return His trust.


Complete After-sale Services:

We can send engineers to customer plant to do machine installation and commissioning; we provide hydraulic schematic drawing, electric principle diagrams, mechanic spare parts drawings, civil works drawing; We always listen and give consultation.
